Guide to Writing LADBS NEC Standard Electrical Load Calculation
Completing the LADBS NEC Standard Electrical Load Calculation form is an important step in ensuring that your electrical system meets safety and performance standards. Careful attention to detail will help you provide accurate information, which is crucial for the evaluation process. Follow these steps to fill out the form correctly.
- Begin by entering your project information at the top of the form. This includes the project name, address, and permit number.
- Next, specify the type of occupancy. Indicate whether it is residential, commercial, or industrial.
- Provide the total square footage of the building or area being calculated. Make sure to measure accurately.
- List all major electrical appliances and their respective loads in watts. This includes lighting, heating, and cooling systems.
- Calculate the total load by summing all the individual loads you have listed. Write this total in the designated space.
- Determine the demand factors applicable to your project. Refer to the NEC guidelines to find the appropriate factors.
- Apply the demand factors to the total load. This will give you the adjusted load for your project.
- Complete any additional sections that may require information about special equipment or unique circumstances.
- Review the entire form for accuracy and completeness before submitting it.
Once the form is filled out, it is ready for submission to the appropriate authorities for review. Ensure that you keep a copy for your records. This will help you track your submission and any follow-up actions that may be required.
Document Breakdown
| Fact Name | Description |
|---|---|
| Purpose | The LADBS NEC Standard Electrical Load Calculation form is used to determine the electrical load requirements for new and existing buildings in compliance with the National Electrical Code (NEC). |
| Compliance | This form ensures that electrical installations meet safety standards and local regulations, helping to prevent overloads and electrical hazards. |
| Required Information | Users must provide detailed information about the building, including square footage, number of circuits, and types of appliances. |
| Governing Law | The form adheres to the California Electrical Code, which is based on the NEC, along with local amendments specific to Los Angeles. |
| Submission | The completed form must be submitted to the Los Angeles Department of Building and Safety (LADBS) as part of the permit application process. |
| Review Process | LADBS reviews the submitted form to ensure compliance before issuing any electrical permits, which can affect project timelines. |
FAQ
What is the LADBS NEC Standard Electrical Load Calculation form?
The LADBS NEC Standard Electrical Load Calculation form is a document used to determine the electrical load requirements for residential and commercial buildings in Los Angeles. This form ensures compliance with the National Electrical Code (NEC) and local regulations, helping to ensure safe and adequate electrical service.
Why is the load calculation necessary?
A load calculation is essential for several reasons:
- It helps to determine the appropriate size of electrical service needed for a building.
- It ensures that the electrical system can handle the expected load without risk of overload.
- It is often a requirement for obtaining permits and passing inspections.
Who needs to complete this form?
Any contractor, electrician, or property owner planning to install or upgrade electrical systems in a building must complete this form. It is necessary for both new constructions and renovations.
How do I fill out the form?
To fill out the form, follow these steps:
- Gather information about the electrical appliances and systems in the building.
- Calculate the total load for each circuit based on the NEC guidelines.
- Enter the calculated loads into the appropriate sections of the form.
- Review the completed form for accuracy before submission.
Where can I obtain the form?
The LADBS NEC Standard Electrical Load Calculation form can be downloaded from the Los Angeles Department of Building and Safety website. It may also be available at local LADBS offices.
What happens if I submit an incorrect calculation?
If an incorrect calculation is submitted, it may lead to delays in obtaining permits or passing inspections. The LADBS may require resubmission of the form with the correct information, which can add time and costs to your project.
Is there a fee associated with submitting the form?
There is no fee specifically for submitting the LADBS NEC Standard Electrical Load Calculation form. However, other fees may apply for permits and inspections related to the electrical work being performed.
How long does it take to process the form?
The processing time for the form can vary based on the volume of applications being reviewed. Generally, you can expect a response within a few business days, but it is advisable to check with the LADBS for the most current timelines.
Can I use the form for both residential and commercial projects?
Yes, the LADBS NEC Standard Electrical Load Calculation form is designed for both residential and commercial projects. However, the load calculations may differ based on the type of building and its specific electrical needs.
What should I do if I have questions while completing the form?
If you have questions while filling out the form, you can contact the LADBS directly. They provide resources and assistance to help ensure that your calculations are accurate and compliant with the NEC and local regulations.
Fill out Other Forms
Final Divorce Decree Michigan - The Plaintiff’s attorney’s details are necessary for legal representation during the divorce process.
The Check Register form is not only essential for keeping track of checks written but also complements tools like the Fillable Blank Check, which make managing your finances easier and more organized. With these resources at hand, you can gain a comprehensive overview of your financial transactions and avoid potential budgeting pitfalls.
Printable Truck Driver Daily Time Sheet - This is a straightforward tool designed for easy tracking of driving hours.

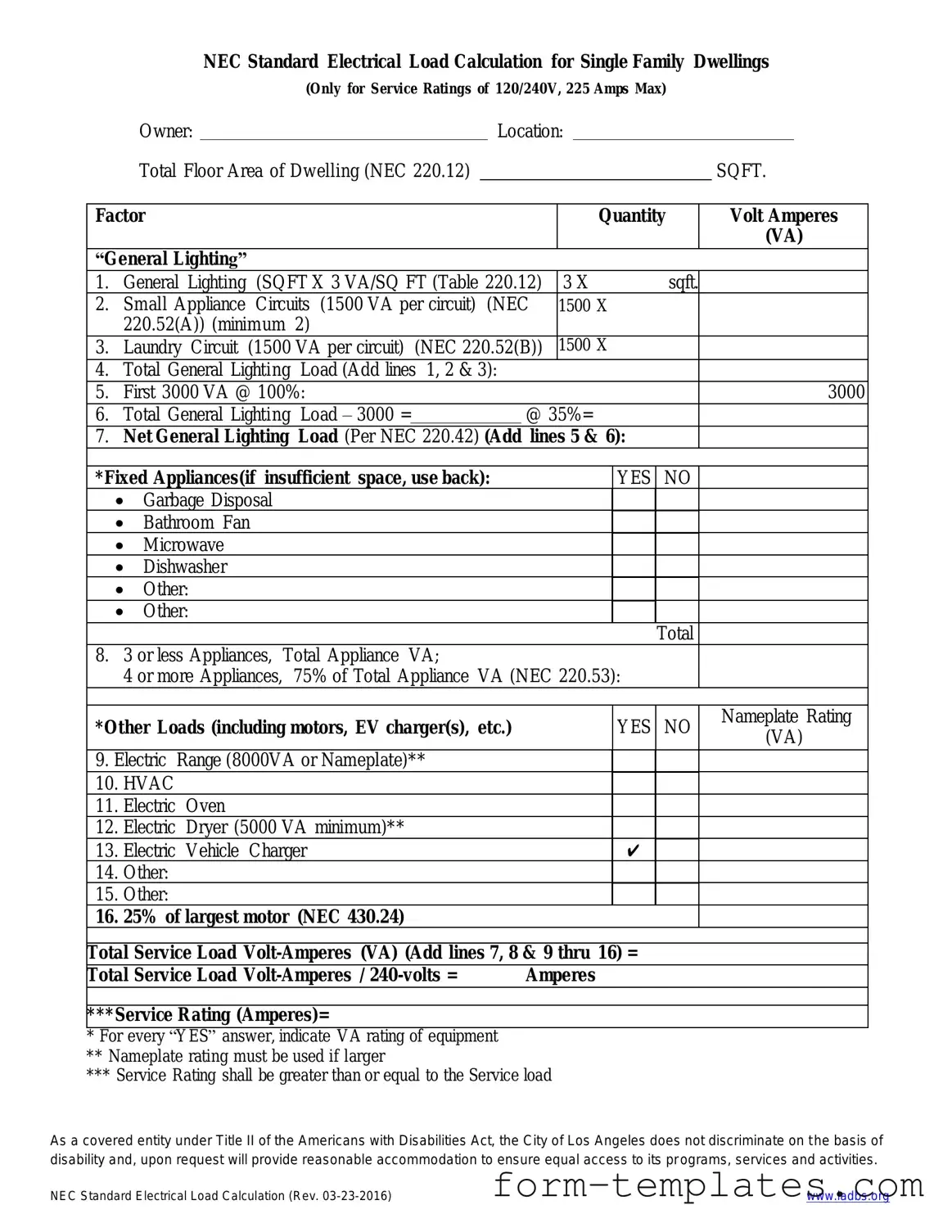

LADBS NEC Standard Electrical Load Calculation Example
